Sommercable Mistral 16 Stok Kodu: 47310900

Multicore Kablo

SC-Mistral MCF16


Advantages:
- Additional insulation for each wire pair with a numbered and colour-coded PVC sleeve
- Very flexible and tread-resistant owing to the use of a rubberlike jacket material
- Simple and fast handling due to the use of compound foil and a pre-twisted drain wire
- High bending cycles due to the tightly stranded Cu wires
- Returns on the cable splice are instantly recognisable by the colour coding on the conductor pairs
- High transmission quality even with excess distances (low capacitance!)
- Affordable price

Application:
- Ideal for studio installation and permanent installation
- Fixed installation in theatres, public buildings etc.
- Construction of dependable cable reel systems

Technical Data:
- Article number: 100-0101
- Article number: 100-0101-16
- Name: SC-Mistral MCF16
- Name: SC-Mistral MCF
- EAN: 4049371000611
- Properties: Analog
- Properties: OFC oxygen free copper
- Properties: Digital 110 Ω AES / EBU
- Application area: Installation
- Application area: Mobile outdoor / indoor
- Application area: Studio / Broadcast
- Application: Multipair
- Colour: black
- Signal transmission: symmetrical

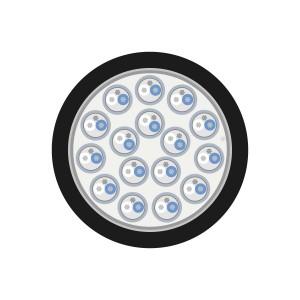

- Construction: [16(2LI2Y0,22mm²)(ST)Y]F(ST)Y
- Jacket Ø: 19,40 mm
- Jacket Ø: 0.7638 "
- Number of Channels (audio): 24
- Number of Channels (audio): 32
- Number of Channels (audio): 12
- Number of Channels (audio): 16
- Number of Channels (audio): 16
- Number of Channels (audio): 8
- Number of Channels (audio): 4
- Number of Channels (audio): 2
- Inner conductor (audio): 2
- Inner conductor (audio): 0,22 mm²
- Inner conductor (audio): 0.0003 sqin
- Inner conductor Ø (audio): 0,53 mm
- Inner conductor Ø (audio): 0.0209 "
- AWG (audio): 24
- Shielding: AL / PT foil + total foil shielding + filler strand
- Shielding factor: 100 %
- Copper strands (audio): 7
- Copper strand Ø (audio): 0,20 mm
- Copper strand Ø (audio): 0.0079 "
- Conductor insulation material: Foam / Skin-PE
- Conductor insulation Ø: 1,60 mm
- Conductor insulation Ø: 0.063 "
- UV-resistant: yes
- Fire load per m: 2,25 kWh
- Style variant: round
- Packing: bulk stock
- Temperature min.: -30 °C
- Temperature max.: 70 °C
- Width: 19,4 mm
- Width: 0.7638 "
- Height: 19,4 mm
- Height: 0.7638 "
- Capac. cond./cond. per 1 m (audio): 46 pF
- Capacity wire/wire at 1 ft. (audio): 14.0208 pF
- Capac. cond./shield. per 1 m (audio): 85 pF
- Capacity wire/electic screen at 1 ft. (audio): 25.908 pF
- Impedance: 110 Ω
- Insulation resist. per 1 km: 1 GΩ
- Insulation resist. per 1000 feet: 0.3048 GΩ
- Insulation resist. per 1 km (audio): 1 GΩ
- Insulation resist. per 1000 feet (audio): 0.3048 GΩ
- Conductor resistance per 1 km: 80 Ω
- Conductor resistance per 1000 ft.: 24.384 Ω
- Shield. resistance per 1 km: 75 Ω
- Shield. resistance per 1000 ft.: 22.86 Ω
- BPVo-Euroclass: Fca
