P6ST/XM
Soundsation
GO SOUND 8A
Stok Kodu :
320 Watt 8” Polypropylene Active Speaker
| 2-Way Active Speaker | |
| Sturdy polypropylene enclosure yet compact and lightweight | |
| 320 Watt class AB power amplifier | |
| 8" woofer with 1" compression driver | |

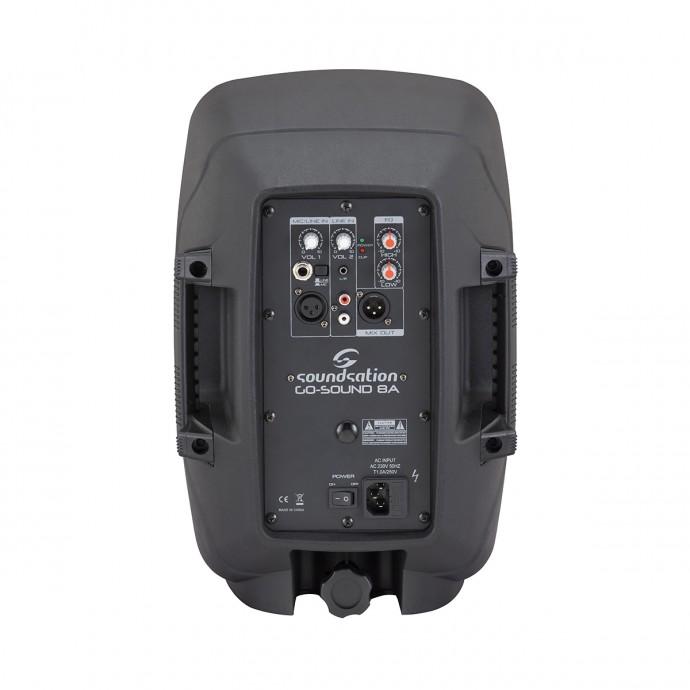

| Balanced microphone/Line inputs XLR + ¼” Jack and line inputs Stereo RCA + Stereo Mini jack ideal to connect smartphones and tablets | |
| XLR line output | |
| Mic/line switch, volume and equalizer (Hi and Low) controls | |
| 36 mm standard pole mount | |
| 2 side handles for convenient carrying | |
| Speaker Dimension (WxHxD) | 260 x 390 x 250 mm |
| Weight | 5 Kg |
| 2-Way active speaker | |
| Woofer | 8" with 1.2" voice coil |
| Compression driver | 1” voice coil, 1” throat |
| Directivity | 90° x 50°, asymmetric |
| Frequency Response [- 3dB] | 80Hz - 18KHz |
| Frequency Response [- 10dB] | 75Hz - 18KHz |
| Max SPL(Peak) | 110dB |
| Sensitivity | 91dB |
| Class AB amplifier | |
| Power (Peak/Rated) | 320W/160W |
| Crossover | 3.5KHz, 18dB/Oct. |
| EQ | High (2.5KHz, +/- 12 dB); Low (150Hz, +/- 12 dB) |
| LEDs | Power On (Green), Clip (Red) |
| Power Requirement | 230Vac - 50 Hz |
| Minimum Power Consumption | 90W |
| Power Connector | VDE with T1A-250V Fuse |
| Speaker Dimension (WxHxD) | 260 x 390 x 250 mm |
| Weight | 5 Kg |
