TYM-15
Soundsation
HYPER TOP 6A
Stok Kodu :
200W 6" Polypropylene active speaker
| 2-Way Active Speaker | |
| High resonance, sturdy and lightweight polypropylene cabinet with full metal grille and foam soundproof material | |
| Class AB 200W amplifier | |
| 6" woofer and 1" driver | |

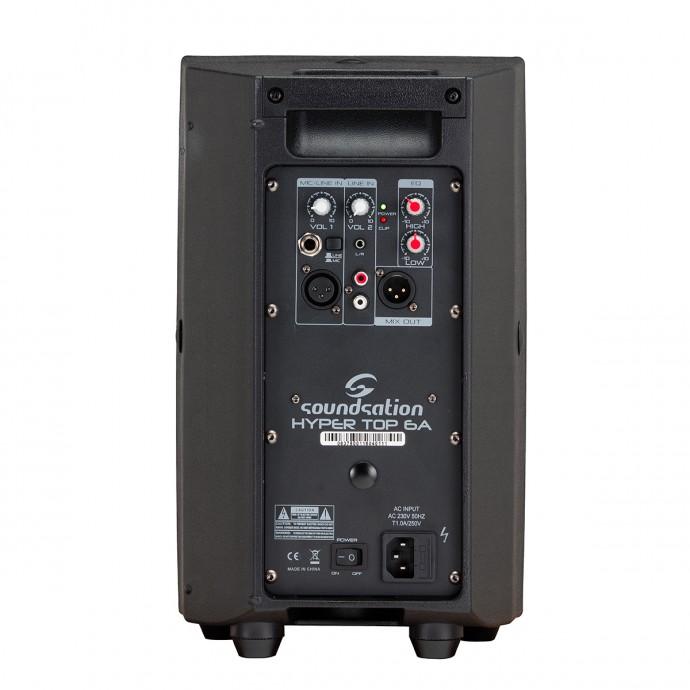

| Microphone/line inputs XLR + jack jack ¼”, stereo RCA + stereo mini jack ideal to connect smartphones or tablets | |
| XLR output mix out | |
| Volume and equalization Hi/LOW controls | |
| Suited for stage monitor use at 30°/45° | |
| Top handle for easy carrying | |
| 36mm pole mount | |
| 4 M8 flying points, one each side | |
| Dimensions (WxHxD) | 217 x 367 x 209 mm |
| Weight | 5,8 Kg |
| 2-Way active speaker | |
| Woofer | 6" with 1.2" voice coil |
| Compression driver | 1” voice coil, 1” throat |
| Horn | 90° x 60°, symmetric |
| Frequency Response [- 10dB] | 67Hz - 19KHz |
| Frequency Response [- 3dB] | 72Hz - 19KHz |
| Max SPL | 108dB |
| Sensitivity | 89dB |
| Class AB amplifier | |
| Power (Peak/Rated) | 200W/100W |
| Crossover | 3.5KHz, 18dB/Oct |
| EQ | High (2.5KHz, +/- 12 dB); Low (150Hz, +/- 12 dB) |
| LEDs | Power On (Green), Clip (Red) |
| Power Requirement | 230Vac - 50 Hz |
| Minimum Power Consumption | 60W |
| Power Connector | VDE with T1A-250V Fuse |
| Dimensions (WxHxD) | 217 x 367 x 209 mm |
| Weight | 5,8 Kg |
